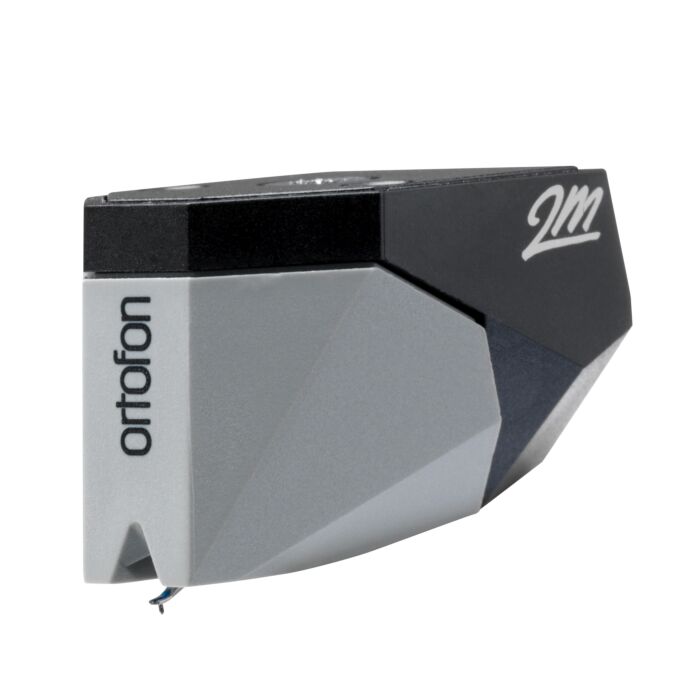

Ortofon 2M 78 MM Cartridge
Free UK Delivery
Key Features
- Optimised sound reproduction and high level of sonic accuracy
- A spherical diamond that is perfect for playback of 78 rpm shellac records, which require a larger stylus profile
- Uses a strapped output to deliver the same output signal from both sets of pole pins
- Supplied with 2 different sets of screws (M2.5 x 5 & M2.5 x 7)
- Stylus brush included
- Also available with integrated headshell or verso version
Ortofon 2M 78 MM Cartridge
The 2M Series of cartridges from Ortofon has been designed for precise and accurate retrieval of the information in the record groove. Indeed, it is Ortofon's lasting philosophy to only ever play the recorded sound, without colouration.
The pre-existing range of 2M cartridges has rapidly been established as a reference point for all good moving magnet cartridges. From the introductory Red, through to the high-end Black; 2M is now a go-to name in moving magnet technology.
2012 sees Ortofon open up new markets within the same design principle of 2M. The 2M 78 and 2MMono offer users of older, rare vinyl a higher-quality playback medium that had previously been available.
The 2M 78 features an improved True Mono engine, which provides a high level of sonic accuracy, as well as an expertly cut Spherical diamond that is perfect for playback of 78 rpm records (which require a larger stylus profile).
Who is Ortofon?
Ortofon is a Danish manufacturer of high-quality phono cartridges, designed to get the very most out of your vinyl collection from a variety of price points. Ortofon cartridges, both Moving Magnet and Moving Coil configurations are commonly found supplied with high-quality ProJect turntable models, but Ortofon cartridges sound exceptional with any compatible turntable.
Output Voltage (at 1kHz, 5cm/sec) |
Ortofon 2M 78 Ortofon 2M Mono |
Frequency Range (at -3dB) |
20 Hz - 22 kHz |
Frequency Response 20Hz - 20kHz |
+3 / -1dB |
Tracking Ability at 315Hz |
Typically 70μm |
Compliance, Dynamic, Lateral |
18μm / mN |
Stylus Type | Spherical |
Stylus Tip Radius R | 65μm |
Tracking Force Range | 1.6 - 2.0g (16 - 20mN) |
Recommended Tracking Force |
1.8g (18mN) |
Tracking Angle | 20º |
Internal Impedance DC Resistance |
700Ω |
Internal Inductance | 300mH |
Recommended Load Resistance |
47kΩ |
Recommended Load Capacitance |
150 - 300pF |
Cartridge Colour Body / Stylus |
Black / Grey |
Cartridge Weight | 7.2g |
Replacement Stylus Unit | Stylus 2M 78 |
