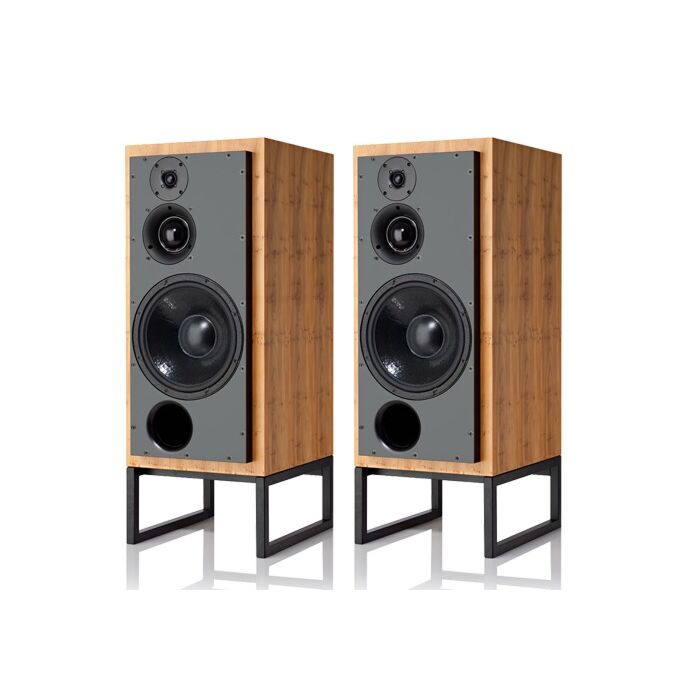

ATC SCM100SL Passive 3-Way stereo speakers

The ATC SCM100 SL passive are designed to perform at their best with the finest quality hi-fi equipment.

Like their smaller brother, the SCM50 ASL, the monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S soft dome midrange driver. However, recent modifications that include an upgraded tweeter and enhanced port profile have brought about further improvements in all performance parameters.

Key Features

• 25mm High-frequency tweeter
• 75mm Midrange driver
• 314mm super linear low-frequency driver
• Frequency Response -6dB: 35Hz & 22kHz
• Recommended Power Amplifier: 100 to 1500 Watts

Bass performance is equally impressive, thanks to ATC’s 12″ professional level bass driver that incorporates the company’s unique Super Linear Magnet technology. Bass, mid and HF drive units in the active model have their own dedicated and individually matched MOSFET amplifiers.

ATC’s active crossover network consists of a wide band-width, electronically balanced input stage with high common mode rejection and very low distortion.

In passive form, the SCM100 SL provides broad and symmetrical dispersion, excellent amplitude and phase characteristics throughout the audio frequency range.

Speakers are supplied with stands and fabric wrapped grills.

Who are ATC

Formed in 1974 by Billy Woodman to manufacture custom drive units for the professional sound industry, ATC quickly made its mark with the 12″ PA75-314 driver, a design capable of handling more power and producing less distortion at a higher sound pressure level than any other unit on the market. Having established a market for reference quality precision-made monitors, a succession of smaller ATC speakers then evolved, ranging from SCM7s through 10s and 20s. Available in both active and passive versions, they offered elite ATC performance and reliability to many new customers.

Through ATC’s commitment to multi-channel mastering and its direct involvement with leading players in the professional audio industry including Sony Music and Telarc, ATC’s products are installed at some of the world’s most prestigious multi-channel studios and auditoria. Where ever the best is required you will find ATC.
