ATC SCM40A Active 3-Way Loudspeakers

ATC SCM40A 'Active' Floorstanding Speakers

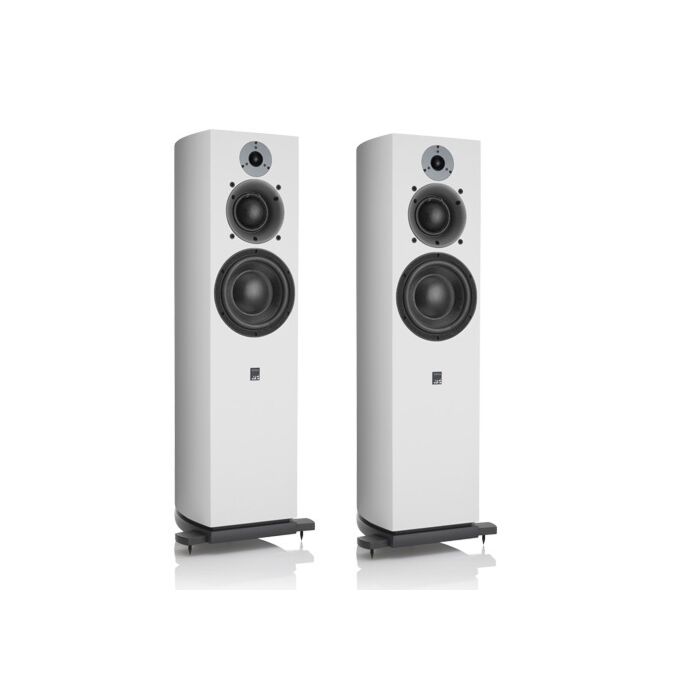

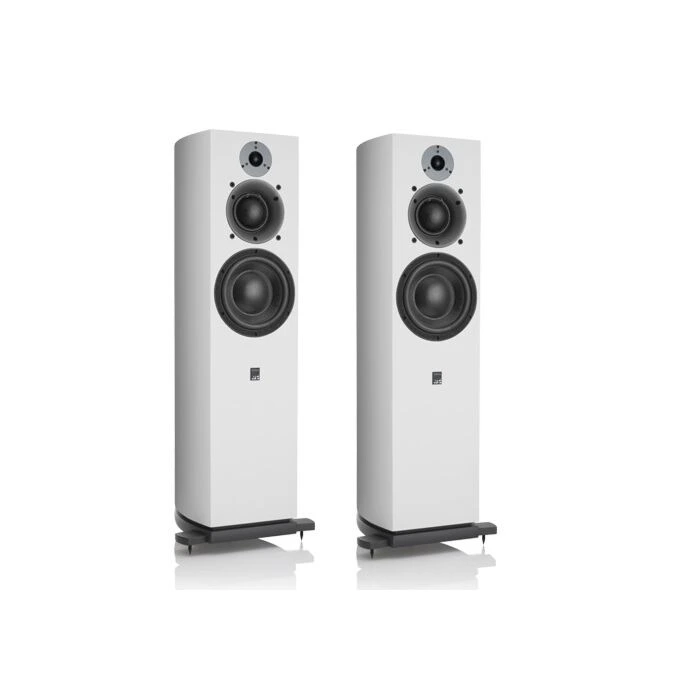

The new active version of the SCM40 incorporates ATC-designed and built drive units powered by its pro-spec tri-amplifier pack.

Featuring wholly ATC-designed and built drivers and amplifiers, the new SCM40A system is an active version of the SCM40 three-way floor standing speaker, launched in late 2013. The SCM40A utilises ATC’s remarkable soft dome dual-suspension SH25-76 tweeter together with the company’s signature 75mm soft dome mid-range and a 164mm short coil/long gap (under-hung) bass unit.

The drivers are powered individually by a proprietary ATC tri-amplifier pack, upgraded from the version employed by the established and successful Pro SCMA 25 monitor. Housed in a curved, laminated cabinet, the SCM40A is the first of the multi-award-winning ‘Passive’ Series speakers to be made active.

Key Features

• New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide.
• ATC Soft Dome mid-range driver.
• ATC 164mm short coil bass driver.
• All drive units incorporate massive optimised motor assemblies.
• On-board grounded source 242-watt Class A/B Tri-amplifier.
• Active crossover filters and overload protection.
• Veneered Finish Options – Cherry, Black Ash.
• Painted Finish Options – Satin Black, Satin White.
• 6-year warranty.

SH25-76 Tweeter

Sharing technology with the renowned ATC soft domed mid-range drive unit, the new tweeter employs a unique dual suspension system suppressing rocking modes even at high power output levels. The ATC configuration of a short edge-wound voice coil in a long, narrow magnetic gap ensures exceptionally low distortion throughout its operating band and removes the need for ferrofluids, which can dry out over time, compromising performance.

A complex-shaped, soft-domed diaphragm extends the high-frequency range and offers a smooth off-axis response. The tweeter’s 15,000 gauss (1.5 tesla) neodymium magnet has a black heat-treated top plate, which dissipates heat away from the voice coil to maintain high power handling and low power compression. A precision-machined 5.5mm rigid alloy waveguide provides optimum dispersion, flat on-axis frequency response and resonance-free

Soft Dome Midrange

ATC’s iconic 75mm mid-range dome is the latest version of the ground-breaking SM 75-150 soft dome midrange driver introduced by ATC in 1976. It uses a hand-doped acrylic diaphragm, a dual suspension system and a highly linear drive system to deliver uniform dispersion, wide bandwidth and low distortion. ATC’s unique doping formula offers an excellent balance of high damping and low mass, which makes it ideal for suppressing energy from undesirable diaphragm resonances.

Bass Driver

The SCM40A’s 164mm bass driver utilises a hand-coated carbon-paper diaphragm driven by an ‘under-hung’ (short coil/long gap) motor and utilising a massive, optimised magnet assembly. In this application paper pulp is selected for the ideal balance of mass, damping and rigidity. The under-hung motor topology maintains linear coil force and inductance, even at high drive levels, keeping distortion low.

Amp Pack

The onboard discrete MOSFET class AB three-channel amplifier utilising ATC’s Grounded Source® output stage delivers 25W to the HF driver, 60W to mid and 150W to the bass driver for a total of 235 watts continuous power. Input is via balanced XLR.

Crossover

The crossovers are all active, 4th order modified Butterworth with phase compensation circuitry for each crossover point. Active crossovers have the advantage that their response is not modified by a loudspeaker’s variable voice coil impedance, and the phase compensation enables phase coherency at the crossover points, improving tonal balance and enhancing imaging for a pin-point stereo field.

New Cabinets

The SCM40A benefits acoustically and aesthetically from a curved cabinet construction braced and laminated for high rigidity and damping and finished in real cherry or black ash veneer to impart a strong impression of design quality. It is designed for optimum performance with the grille – although the difference in performance without the grill is minimal. The metal grille, finished in anthracite grey, fixes to the cabinet via hidden magnets. According to ATC tradition, the model number represents internal cabinet volume in litres.

Manufactured in-house, the SCM40A offers the ownership of a hand-built ruggedly engineered speaker, world famous for musical accuracy and high power output. Like all ATC products, the SCM40A is backed by a six-year warranty.

Who are ATC

Formed in 1974 by Billy Woodman to manufacture custom drive units for the professional sound industry, ATC quickly made its mark with the 12″ PA75-314 driver, a design capable of handling more power and producing less distortion at a higher sound pressure level than any other unit on the market. Having established a market for reference quality precision-made monitors, a succession of smaller ATC speakers then evolved, ranging from SCM7s through 10s and 20s. Available in both active and passive versions, they offered elite ATC performance and reliability to many new customers.

Through ATC’s commitment to multi-channel mastering and its direct involvement with leading players in the professional audio industry including Sony Music and Telarc, ATC’s products are installed at some of the world’s most prestigious multi-channel studios and auditoria. Where ever the best is required you will find ATC.
