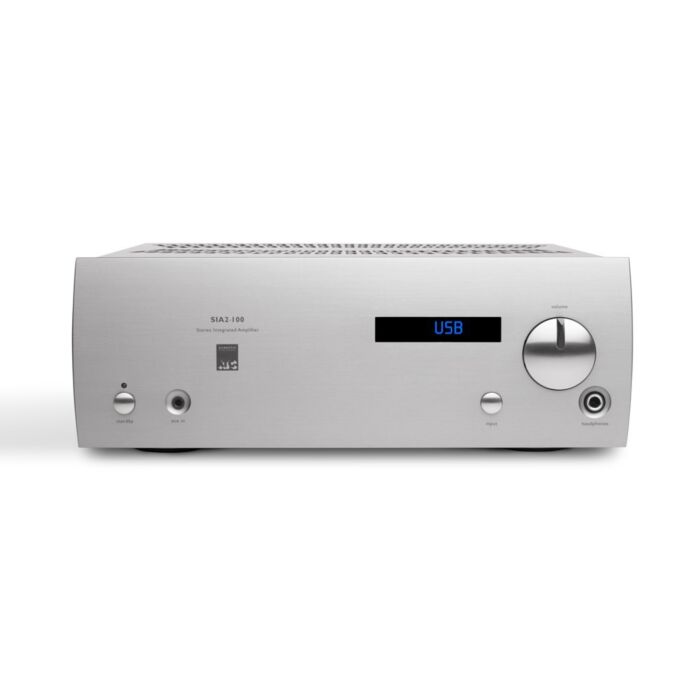

ATC SIA2-100 Stereo Integrated Amplifier
Local Delivery
£2,600.00
Compact in size yet offering high power output and exceptional resolution, this integrated amplifier with on-board DAC is ideally suited to driving ATC’s small and mid-size passive loudspeakers and a very wide range of loudspeakers from other manufacturers. Understated styling makes it easy to integrate with partnering equipment whilst its small footprint occupies very little space in the home. An ideal partner for our CD2 CD Player.
Key Features
- 2 x line-level analogue inputs.
- 3 x digital inputs: USB, Coaxial, TOSLINK.
- Premium AKM 32-bit DAC.
- USB digital input supports up to 384kHz PCM data and native DSD256.*
- 2 x 100W Discrete MOSFET Output Stage
- Headphone amp featuring discrete output stage.
- Handmade in England & covered by a 6-year warranty.
Who are ATC
Formed in 1974 by Billy Woodman to manufacture custom drive units for the professional sound industry, ATC quickly made its mark with the 12″ PA75-314 driver, a design capable of handling more power and producing less distortion at a higher sound pressure level than any other unit on the market. Having established a market for reference quality precision-made monitors, a succession of smaller ATC speakers then evolved, ranging from SCM7s through 10s and 20s. Available in both active and passive versions, they offered elite ATC performance and reliability to many new customers.
Through ATC’s commitment to multi-channel mastering and its direct involvement with leading players in the professional audio industry including Sony Music and Telarc, ATC’s products are installed at some of the world’s most prestigious multi-channel studios and auditoria. Wherever the best is required you will find ATC.
Max. Power Output: 100W (Continuous Av. 8 Ohms, 1kHz, both channels driven)
Line Inputs: Two, stereo (one with additional front panel 3.5mm jack)
Line Input Sensitivity: 500mV
Input Impedance: 13k8 Ohms
Line Outputs: One, stereo
Overload Capacity: 13dB
Line Output Impedance: 10 Ohms
Frequency Response: < 2Hz – > 250kHz (@ -3dB)
Total Harmonic Distortion: 1kHz <0.0015% (-96dB), 10kHz <0.002% (-90dB)
Crosstalk: >80dB (10Hz – 20kHz)
S+N/N Ratio: > 96dB (Wide band), > 108dB (DIN), > 112dB (IEC “A”)
SIA2-100 Digital Inputs – Coaxial & Optical
Distortion: 1kHz <0.0015% (-96dB ), 10kHz <0.005% (-86dB)
Frequency Response: 20Hz – 20kHz (+/- 0.1dB)
S+N/N Ratio: >100dB (IEC “A”)
Word Lengths Supported: 16 – 24 Bit
Sample Rates Supported: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz *
* 192kHz supported via coaxial input only
SIA2-100 Digital Inputs – USB (PCM)
Distortion: 1kHz <0.0015% (-96dB ), 10kHz <0.005% (-86dB)
Frequency Response: 20Hz – 50kHz (+/- 0.1dB)
S+N/N Ratio: >100dB (IEC “A”)
Word Lengths Supported: 16 – 32 Bit
Sample Rates Supported: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96.0kHz, 176.4kHz, 192.0kHz, 352.8kHz, 384.0kHz
SIA2-100 Digital Inputs – USB (DSD)
Frequency Response: 10Hz – 50kHz (+/- 0.1dB)
S+N/N Ratio: >100dB (IEC “A”)
DSD Rates Supported: Windows DSD64, DSD128, and DSD256, MAC OS DSD64 and DSD128
SIA2-100 Mains Power
Voltage: 115/230V AC 50/60Hz (internally selectable). 100v AC via dedicated transformer. Mains voltage selection is to be carried out by ATC only.
Maximum Power Consumption: 400W
SIA2-100 Physical
Dimensions: 113 x 315 x 315mm / 4.4 x 12.4 x 12.4" - Dimensions exclude rear panel connectors. Take care to leave space behind the unit for connectors and cables.
Weight: 9.70kg/24.39lbs
