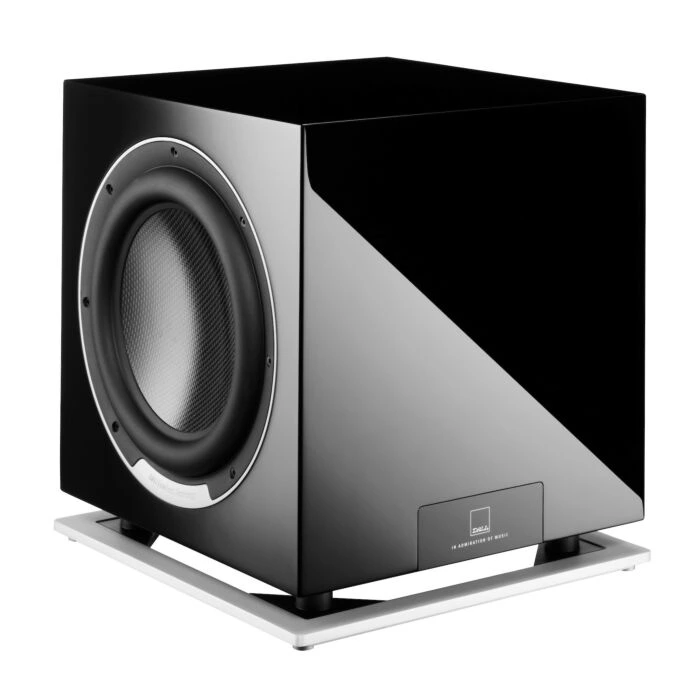

DALI Sub P-10 DSS Active Subwoofer

DALI Sub P-10 DSS Active Subwoofer

Amplifier

The punchy integrated 300 Watt RMS Class D amplifier is a highly linear construction. This amp is designed not for only continuous power, but to also hit that peak performance for the customer, the P-10 DDS is able to deliver a substantial 500 Watt peak power (this is very vital when it comes to both music and movie signals). The P-10 DSS has a very low power consumption thanks to the 'Switch Mode Power Supply' - giving off only 0.4 Watts in standby mode. The amplifier displays a superb efficiency of 70%, resulting in an absolute minimum of heat loss; for this reason, you will find absolutely no heat sink on this subwoofer. The integrated limiter compares the input signal amplitude to the potential output signal level. This clever system will detect any potential problem with the limiter, it will cut the signal in a soft manner without affecting the peak power. The p-10 DDS is fitted with controls for gain, cut-off frequency and phase, the amp is able to adapt to any front speaker and room acoustics with the choice of LFE and LINE inputs, making it accessible to almost any amplifier, receiver or processor. DALI SUB P-10 DSS allows you to choose between the movie and a music mode, also via the remote control. For a realistic and powerful rendering of e.g. explosions in a movie, the sound mode should be set to CINEMA, amplifying the lowest frequencies to ensure a realistic experience. For a neutral and very linear performance, the sound mode should be set to HIFI. This will ensure a precise rendering of all the details of the music while optimising the integration with your front speakers.

Woofer

DALI SUB M-10 D is equipped with an active 10” down-firing woofer. The cone is a sandwich construction with carbon fibre at the front paired with paper pulp at the back. The geometry and the material were applied to eliminate the need for a dust cap. The result is a rigid cone with superior breakup characteristics while at the same time being very lightweight and agile. Indeed these are prerequisites for precise bass reproduction, rendering all the dynamics of the signal.

Passive Woofers

The two side-mounted woofers share much of the technology from the active driver. The cone geometry is identical to the firing down woofer and in these passive woofers, the material made to use them is also made out of carbon fibre. The 'upper' part of the chassis is the same. However, there is only one spider and no voice coil or magnet system behind it. There is a passive radiator is located inside this sub which is allowing it to follow the movement of the active woofer.

Cabinet

Measuring only 370 x 340 x 340 mm (HxWxD) the cabinet is extremely compact despite this subwoofer's ability to go both loud and deep. It features 10 layers of PE lacquer. And in between, each layer is hand polished to ensure a deep, high gloss and elegant surface. This cabinet design has a very sleek design which plays a vital role when it comes to placement inside your home/workplace.
