Lehmann Black Cube MM/MC Phonostage
Free UK Delivery

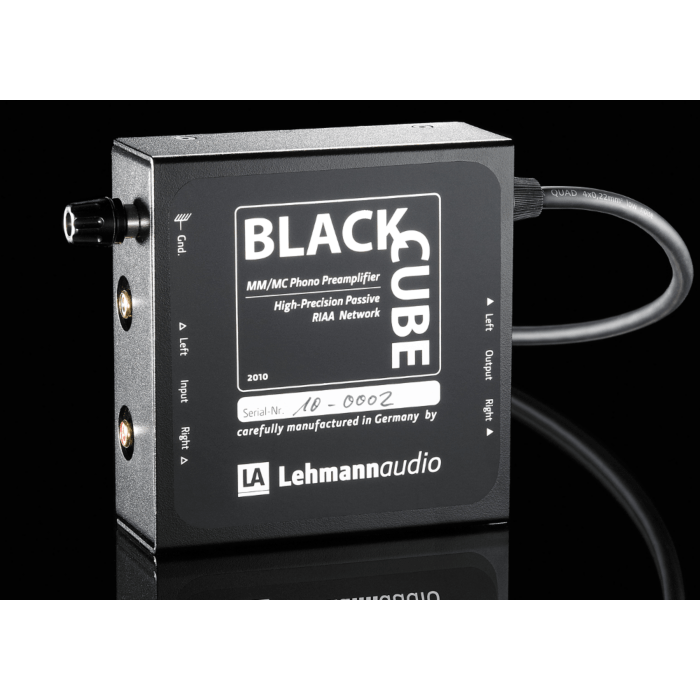

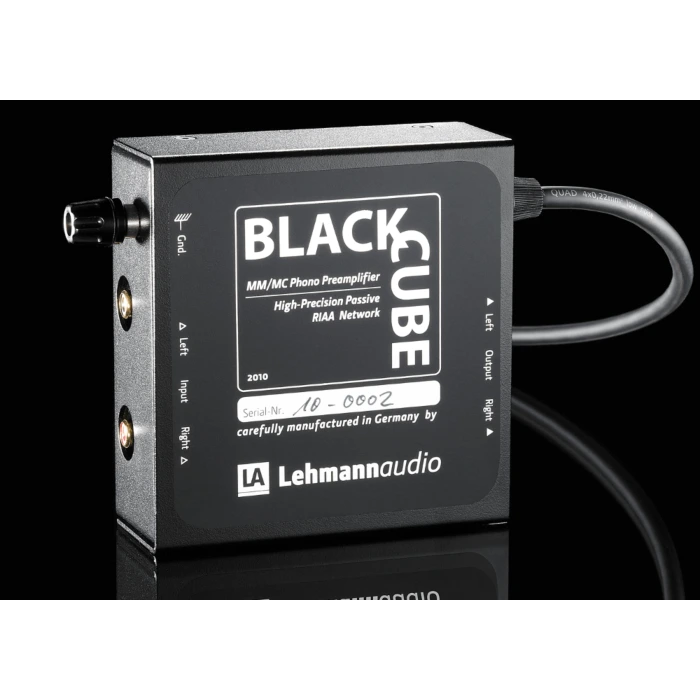

Lehmann Black Cube MM/MC Phonostage
The Black Cube is a phono stage developed for the analogue oriented music lover. The small box can be placed nearby the turntable. A wide variety of pickup cartridges can be connected ranging from mc to high-output mm. The Black Cube satisfies even very high demands to analogue audiophile music reproduction. The quality of the sophisticated electronic circuit equals the outstanding sonic performance at a price you would never expect when you hear the Black Cube in a blind test comparison.
The passive RIAA-network of the Black Cube is placed between two linear amplifier stages - highly buffered special amplifiers by Analogue Devices. This minimises nonlinearities caused by phase errors that would occur in active filters. The use of low tolerance WIMA capacitors results in a very stable sonic impression with a fast attack response, delicate tonal balance and realistic soundstage information
The external regulated power supply of the Black Cube can be placed up to 2m away from the audio section. The cable between power supply and an audio section is shielded to keep rfi away from the near noiseless and highly stable supply voltages. This effect is even enhanced by additional supply voltage filtering on the double-sided audio PCB. High-End analogue music reproduction is affordable now since the Black Cube has hit the market!
Who is Lehmann?
Lehmann Audio is an award-winning manufacturer of high-end audio headphone amplifiers, turntable phonostages and power amplifiers founded in 1988 in Cologne, Germany. Lehmann Audio products boast an outstanding level of craftsmanship, tempered with the highest possible audio capability for their price-point, often exceeding the performance of similarly priced models from competitors, and even some products with much larger price-tags.
Sensitivity for Output Level 775 mV/ 0 dB |
MM: 3.8 mV/1 kHz MC: 0.38 mV/1 kHz |
Gain at 1kHz |
MM: 46 dB MC: 66 dB |
Maximum Input Level 1 kHz | MM: 45 mV MC: 4,5 mV |
Signal to Noise Ratio (RMS Unweighted) | MM: 71 dB MC: 63 dB |
Gain | 36 dB, 46 dB, 56 dB, 66 dB |
Channel Separation | > 85 dB at 10 kHz |
Input Capacitance | 100pF |
Input Impedances | 47 kΩ, 470Ω, 100Ω (Switchable) 1x Custom Load 1x Hardwire Slot |
Output Impedance | <100Ω |
RIAA Filter | Passive Equalization Between Two Linear Gain Stages |
Channel Mismatch | Typ. 0,5dB |
Power Consumption | <3W |
Dimensions (W x D x H) | Audio Section: 113 x 108 x 45mm Power Supply: 70 x 110 x 55mm |
Weight | Black Cube: 0.4kg PSU: 0.3kg |
