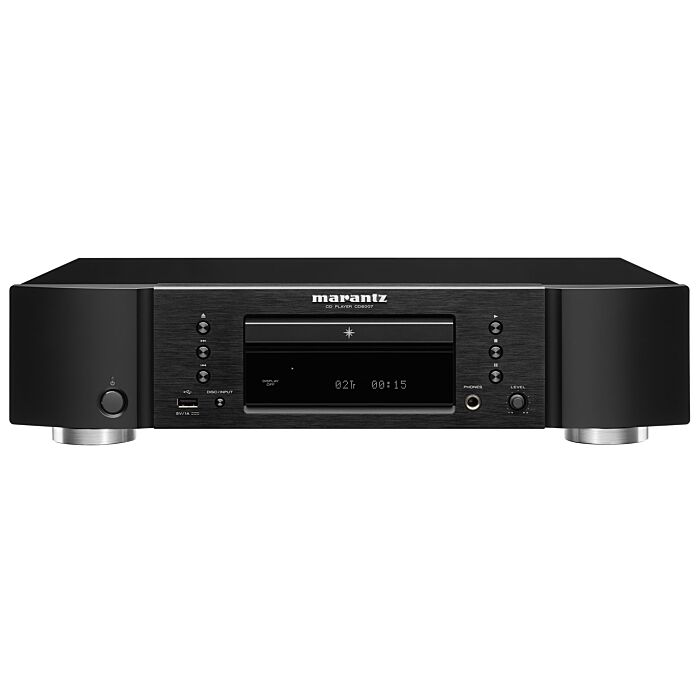

Marantz CD6007 CD player - Ex Display

Marantz HDAM Technology

Marantz developed its own discrete circuit boards to replace standard ICs. These HDAMs consist of discrete surface mount components with short mirror image L/R signal paths. These devices do exactly the same thing as the Op-Amps but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in more dynamic, accurate and detailed sound. In the CD6007, the proprietary HDAM-SA2 circuit improves on its previous HDAM module for a more stable power supply. The idling current stability is less influenced by power transistor temperatures to maintain sound performance even at high level output.

Reference Quality D/A Conversion

The CD6007 features a Hi-Res D/A conversion. It is equipped with a reference class D/A converter, offering two selectable filter options, and provides up to 192-kHz/24-bit and DSD 5.6MHz resolution for optimum musical fidelity with tight bass, pleasant mids and smooth extended highs for CD playback and Hi-Res formats from USB memory stick.

High Current Power Supply

The audio power supply employs high speed, high current Schottky Barrier Diodes and high value storage capacitors. The size of the power supply capacitors has been increased to former models by 120% for improved current stability and reduced AC noise during high demanding listening sessions.

High Slew Rate Op-Amp + HDAM-SA2

The CD6007 offers an upgraded and redesigned headphone amplifier section. It inherits the exclusive Marantz HDAM-SA2 circuit with three gain settings (Low/Mid/High) for a perfect match with almost any brand of headphones for an optimal solo listening experience
