Monitor Audio IWA-250 Installation Amplifier

Monitor Audio IWA-250 Installation Amplifier

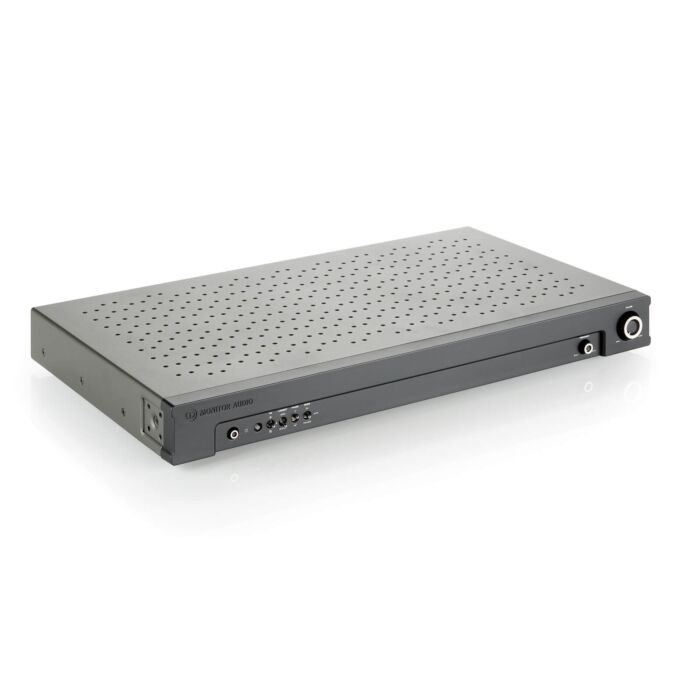

The IWA-250 switch mode amplifier is a slim, powerful dedicated design in a heavy-duty 1U rackmount case. Delivering up to 250 watts into 4 ohms, a single IWA-250 will power single or dual IWS-10s to provide higher power levels for larger rooms or to meet customer demands.

Key Features

• Rigid, high-quality steel case
• Switch-mode power supply
• Class D power amplifier delivering up to 250 watts into 4 ohms (dual IWS-10 drivers)
• High-efficiency design resulting in cool running – low thermal output
• DSP controlled with advanced limiters

The IWA-250 can be configured to switch on automatically using input signal sensing, or by using the preferred 12v trigger link from an AVR or system source. The IWA-250 will then automatically be switched on and off with the AVR, TV or system remote control handset. The amplifier utilises a cool running Class D power stage driven by a PWM with integrated DSP. All filtering and functionality are controlled in the software for precise and reliable operation. It offers a choice of single LFE, balanced XLR and stereo RCA inputs. Output connection is made via two sets of push-type terminals to provide a connection to one or a pair of drivers. The front panel provides access to all control features for easy adjustment when fitted into a rack bay. An EQ switch provides a selection of music, movie and impact presets for the ideal response in-room. There is also an enclosure switch to calibrate the drive characteristics when the IWS-10 is used with or without the IWB-10 back box.

Who is Monitor Audio?

Started in 1972 by the charismatic Mo Iqbal, Monitor Audio began loudspeaker design and production using tried and tested methods available at that time - plastic cone materials, fabric dome tweeters and reflex-loaded braced cabinets. The speakers were welcomed by enthusiasts both in the UK and throughout the World.
