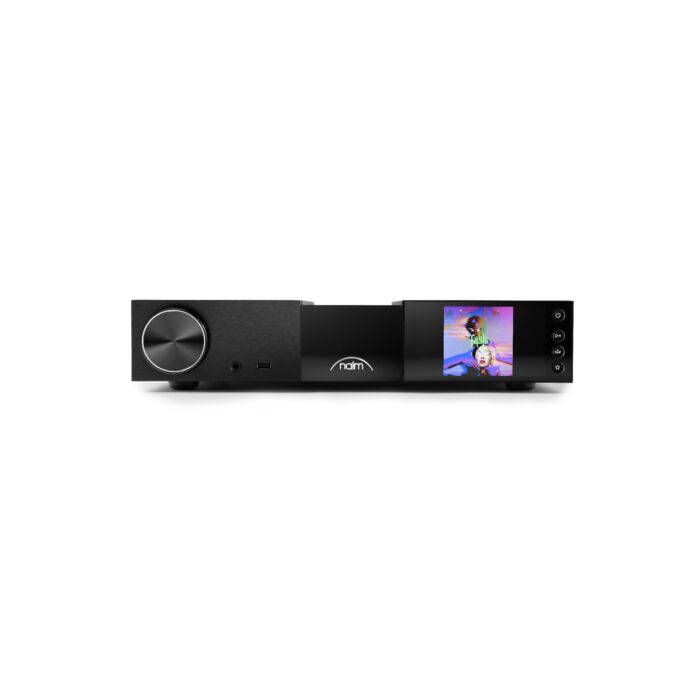

Naim NSC 222 Classic Streaming Pre-Amplifier
Local Delivery
£6,200.00
Naim Summer promotion
Buy the NSC222 streaming preamp and the NAP250 power amp and get a free Naim Muso worth £889.00
NSC 222 – A SUPERLATIVE STREAMING PRE-AMPLIFIER
Start your New Classic musical journey with the NSC 222: a multi-talented streaming pre-amplifier that lets you keep things simple without compromising musical quality. Enjoy an exceptional streaming performance from Spotify, TIDAL, Qobuz, Apple Music, a world of internet radio and more, with support for bitrates up to 32bit/284kHz.
Prefer vinyl? The NSC 222 has an integrated MM phono stage. A headphone fan? The NSC 222 features Naim’s latest headphone technology as featured in the multi-award-winning Uniti Atom Headphone Edition, for a sublime solo-listening experience.
Key Features
- Statement volume control architecture using reed relays. Premium sound quality of fixed resistor volume control, providing precise channel balance.
- Reed relay input switching
- Single-ended discrete transistor class A input buffers and filter circuits; using hand-soldered polystyrene capacitors.
- Built-in high-quality MM phono stage
- 5.5-inch colour display
- Configurable inputs: Input sensitivity pre-set, naming, AV bypass mode and unused input disabling.
- Uses Naim’s latest NP800 streaming card with LVDSbalanced digital signals for low noise.
- Stream internet radio stations, music from Spotify Connect, Apple Music, Tidal (and Tidal Connect), Qobuz, AirPlay 2, Chromecast, UPnP servers, USB attached storage and Roon ready.
- aptX Adaptive Bluetooth
- App control continuity from Mu-so through to Classic range.
- Multi-room capability with other Naim streaming products (right up to Classic range and 500 Series).
- ZigBee RF bi-directional remote control, line of sight not needed, volume changes reflected on the remote.
- Dual optical 3.5mm inter-product communications for synchronised standby and lighting, compatible with the new NAP250 power amplifier.
- Twin fixed frequency (44.1kHz and 48kHz based sample rates) master clocks for ultra-low jitter. It runs in clock master mode for streaming services.
- DSP RAM buffer for SP/DIF inputs eliminates jitter caused by SP/DIF modulation (4x SP/DIF inputs).
- Naim’s proprietary DSP 705.6kHz/768kHz integer oversampling filter.
- PCM1791A DAC (running in external filter mode) followed by discrete transistor class A op-amps and filters. Custom polystyrene ultralow dielectric absorption Post DAC filter components.
- PSU upgrade with NPX 300 via two Burndy cables
(one digital and one analogue). - Galvanic isolation of control and audio circuits.
- 5-year warranty when registered with Naim- click here to register your product
Everything you’re enjoying listening to is beautifully displayed on a larger, 5.5" full-colour screen. Easily control the NSC 222 via the Focal & Naim App, the smart Zigbee remote-control handset (no line of sight required) or the unit itself: the illuminated volume control is a joy to use.
A unique streaming platform
NSC 222 incorporates the very latest Naim streaming platform. Made by our experts in Salisbury, it sets new standards in terms of its prowess, functionality and ease of use. It is designed to offer true Hi-Fi performance, with the legendary Naim sound. Play all your favourite radio stations non-stop, as well as any music you choose from Spotify Connect, Apple Music, TIDAL, TIDAL Connect, Qobuz, AirPlay 2, Chromecast, UPnP™ servers, USB key, Roon Ready, and more.
Easy App control – in one room or many
The Naim App – available for Apple and Android devices – makes it simple to control your NSC 222, and even link up other music systems around your home into a stunning multi-room set-up. Use the App to access all your music, including your favourite radio stations, streaming services and playlists, and explore artist discographies and biographies.
Simple and enjoyable to use
The NSC 222 is very simple to use – you can easily control it using the Focal & Naim app, available on iOS and Android, but also with the Zigbee smart remote control supplied. Of course, you can also access many features via the NSC 222 itself, and its backlit volume button. For your listening pleasure, the 5.5” colour screen displays the tracks played.
Naim know-how
Under the guidance of our Technical Director responsible for electronic products, Naim’s engineers have developed simple but elegant circuits, combined with our acclaimed and high-performing DR technology, guaranteeing the stable and fluid power supply so essential for superior performance. Our teams opt for the highest-quality components and perform ultra-precise measurements for an uncompromising result.
A timeless design
Naim products are designed to be both contemporary and timeless. Our creations forego any unnecessary decoration that does not contribute to performance targets or add to the sound quality. The design of the NSC 222 streamer and preamplifier combines extreme precision, impressive functionality, sleek design and innovative materials to make it easy and enjoyable to use.
Naim founder, Julian Vereker, immediately understood the many benefits of aluminium as a material for wrapping Naim electronic components. He knew that delicate audio components are very sensitive to the effects of magnetic fields, unstable temperatures, unwanted vibrations, etc. While other manufacturers were bending thin sheets of steel, Naim used thick plates of aluminium.
The Naim Classic range maximises this highly technical and durable approach, with aluminium housings rivalled only by Statement, our flagship product. Naim chose superior-quality aluminium, which optimally combines thermal and microphonic properties. The front panels are treated with solid 20mm-thick aluminium billets; heat sinks frame the side panels and 5mm plates cover the top and bottom surfaces of the products. The aluminium is brushed, sandblasted and anodised to guarantee unalterable beauty throughout the product's life. The New Classic range can be immediately distinguished with one look and one touch before the first note of music even plays.
Who is Naim?
Naim Audio has a special place in British audio, thanks to its founder and inspirational leader Julian Vereker, a hugely talented mechanical and electronic engineer with a passion for, amongst many things, music. Founded in 1973, Naim has always had a firm philosophy of music first, measurements second - each Naim product is extensively auditioned as part of the product development process to make sure that it delivers clear, emotional music-making ability. Naim products are designed to bring the closest facsimile of a live music event into your home listening environment, to give you maximum pleasure from your music collection
| Preamplifier | • 1 x XLR pair (Stereo XLR balanced impedance 7Vrms max) • 1 x RCA pair (Stereo RCA 7Vrms max) • 1 x 6.35mm headphone jack (Headphone 1.5W into 16) |
| USB | 2 x USB Type A socket (front and rear - 1.6A charge) |
| Digital inputs (S/PDIF) | • 2 x Optical TOSLINK (up to 24bit/96kHz) • 1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs) • 1 x coaxial BNC (up to 24bit 192kHz, DoP 64Fs) |
| Frequency Response | • MM: -3dB at 10Hz, RIAA +/-0.1dB • Line: 3Hz to 40kHz -3dB • Digital: 3Hz to 27kHz -3dB |
| Signal-to-Noise Ratio | • MM 80dB ref 5mV A-wtd volume at 0dB • Line 104dB ref 2.2V A-wtd volume at 0dB • Digital 102dB ref 0dBFS A-wtd volume at 0dB |
| Analogue Inputs | • 1 x moving magnet phono • 1 x 8-pin DIN (compatible with 5-pin DIN cables) • 1 x RCA stereo pair • Line level inputs (RCA/DIN): Impedance 47k, 2.2V typical, 7.5Vrms Max • 8-pin DIN has +/-18V for compatible external phono stages such as • Solstice NVC-TT. Compatible with 5-pin DIN • MM phono: 47k/470pF, 5mV, 23dB overload (75mV max) |
| Analogue gain | • Pre-amplifier at max volume 15.5dB (with max Vol and max volume limit at 100%) • Phono stage MM 40dB |
| Audio formats | • WAV - up to 32bit/384kHz • FLAC and AIFF - up to 24bit/384Hz • ALAC (Apple Lossless) - up to 24bit/384Hz • MP3 - up to 48kHz, 320kbit (16 bit) • AAC - up to 48kHz, 320kbit (16 bit) • OGG and WMA - up to 48kHz (16 bit) • DSD - 64 and 128Fs • M4A - up to 48kHz, 320kbit (16 bit) • Gapless playback supported on all formats |
| Digital Level |
|
| Digital Input Sample Rate | Coaxial: 192kHz Optical: 96kHz |
| Additional Inputs | DAB/FM, USB, Ethernet, Wi-Fi, Bluetooth iRadio Service vTuner 5* full service |
| Frequency response | • MM: -3dB at 10Hz, RIAA +/-0.1dB • Line: 3Hz to 40kHz -3dB • Digital: 3Hz to 27kHz -3dB |
| Signal-to-noise ratio | • MM 80dB ref 5mV A-wtd volume at 0dB • Line 104dB ref 2.2V A-wtd volume at 0dB • Digital 102dB ref 0dBFS A-wtd volume at 0dB |
| Distortion | MM: < noise floor • Line: 0.0025% @2.2V input volume at 0dB, 1kHz (Line: 0.015% @2.2V input volume at 0dB, 20kHz) • Digital: 0.0035% @0dBFS volume at 0dB, 1kHz |
| Control |
• App control (iOS and Android), bi-directional ZigBee remote and front panel • Optical 3.5mm output for synchronised control of compatible products e.g. NAP 250/350 |
| Network | Ethernet (10/100Mbps), Wi-Fi (802.11 b/g/n/ac) |
| Typical use consumption | 25w |
| Mains Supply: | 115V or 230V, 50/60Hz |
| Power Supply Options: | NPX 300 |
| Dimensions: (H x W x D) | 35/8x17x121/2" (9.15x43.2x31.75cm) |
| Weight | 11kg |
UK Delivery
Providing your item is in stock, the order is usually dispatched within 24 hours. Postage and packing is completely free for orders over £99*. Out of stock items will be dispatched as soon as they become available, which can take between 4 to 21 days
UK Delivery orders are sent via our couriers' DPD Local on a next-day-delivery service and usually take between 1 and 3 days.
Local Delivery
Certain manufacturers disallow mail order for their products, however a local delivery may be possible.
We offer a local delivery service for a large number of our products. After your order has been placed, a member of the Hifi Gear team will contact you to arrange a convenient date and time for your local, personal delivery.
Click & Collect
We offer a free ‘Click & Collect’ service on all items. As soon as your order has been completed and is ready for collection a member of our team will be in contact with you. Orders can be collected from our store at 11 King Street, Hereford, HR4 9BW.
Please use this link to find more detailed delivery information or contact us for more details
You may also like
-
PMC Twenty5 23i Floorstanding SpeakersAs low as £4,575.00 -

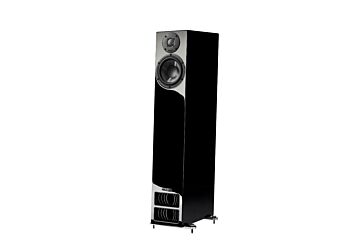

PMC Twenty5 24i Floorstanding SpeakersAs low as £6,575.00 -
