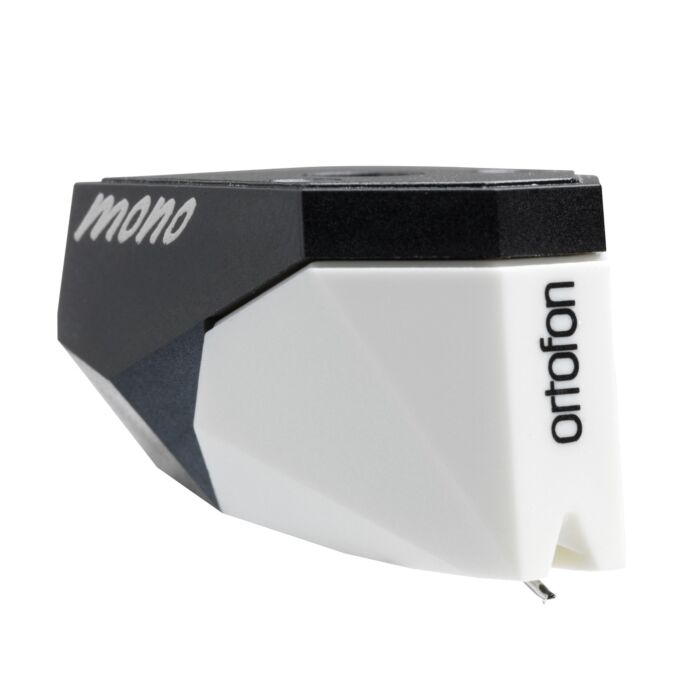

Ortofon 2M Mono Moving Magnet Cartridge
Free UK Delivery
Key features
- Optimised sound reproduction and high level of sonic accuracy
- R 18µm Nude Spherical stylus that is an optimal solution for playing mono microgroove LP vinyl records
- Uses a strapped output to deliver the same output signal from both sets of pole pins
- Supplied with 2 different sets of screws (M2.5 x 5 & M2.5 x 7)
- Stylus brush included
- Also available with integrated headshell or verso version
Ortofon 2M Mono Moving Magnet Cartridge
The 2M Mono features an improved Mono engine, which provides a high level of sonic accuracy The meticulously cut R 18µm Nude Spherical stylus is also an optimal solution for playing mono microgroove vinyl records. Re-open a whole world of Mono recordings with 2M.
Who is Ortofon?
Ortofon is a Danish manufacturer of high-quality phono cartridges, designed to get the very most out of your vinyl collection from a variety of price points. Ortofon cartridges, both Moving Magnet and Moving Coil configurations are commonly found supplied with high-quality ProJect turntable models, but Ortofon cartridges sound exceptional with any compatible turntable.
Output Voltage (at 1kHz, 5cm/sec) | 4mV |
Frequency Range (at -3dB) | 20Hz - 22kHz |
Frequency Response 20Hz - 20kHz | +3 / -1dB |
Tracking Ability at 315Hz | Typically 70μm |
Compliance, Dynamic, Lateral | 18μm / mN |
Stylus Type | Nude Spherical |
Stylus Tip Radius R | 18μm |
Tracking Force Range | 1.6 - 2.0g (16 - 20mN) |
Recommended Tracking Force | 1.8g (18mN) |
Tracking Angle | 20º |
Internal Impedance / DC Resistance | 700Ω |
Internal Inductance | 350mH |
Recommended Load Resistance | 47kΩ |
Recommended Load Capacitance | 150 - 300pF |
Cartridge Colour Body / Stylus | Black / White |
Cartridge Weight | 7.2g |

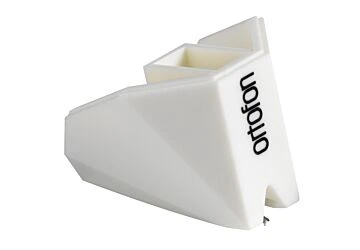

Replacement Stylus Unit | Stylus 2M Mono |
Accessories | Screwdriver, Stylus Brush |
