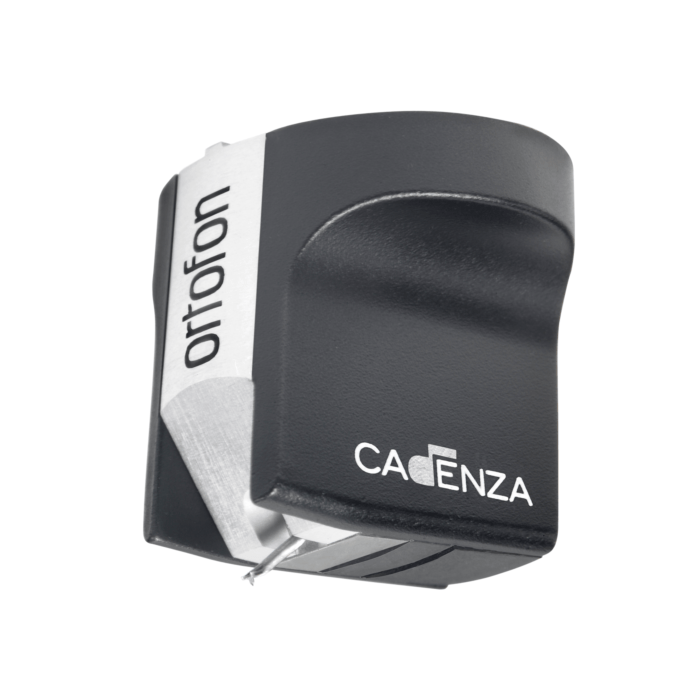

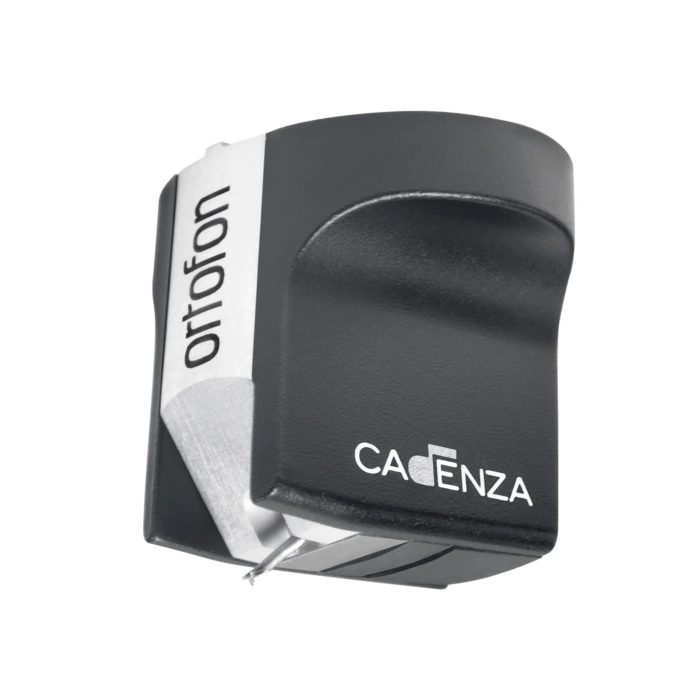

Ortofon Cadenza Mono MC Cartridge
Free UK Delivery
Key Features
- True mono cartridge for playing mono microgroove vinyl records
- Sharing internal build with the Cadenza Red and with optimized adjustments for mono playback the sound is relaxed, homogeneous and moderate
- Internal coils made from 6NX (99.9999%) pure silver wire
- Stainless steel aluminium cartridge body
- Nude Fine Line stylus profile with a cylindrical aluminium cantilever
Ortofon Cadenza Mono MC Cartridge
Moving Coil cartridges feature an inverted version of the Moving Magnet design. Instead of a magnet sitting on the end of the cantilever between two coils, the coils have attached the cantilever and a magnet is placed near them. Because space within the cartridge at this level is extremely limited, the coils are made from an exceptionally fine wire. The coils tiny size results in a very low output.
Fitted with a nude fine line stylus of radius r/R 8/40 um the Ortofon Cadenza Mono will allow you to hear new and exciting details of the mono records you never knew existed. Designed for higher tracking weights needed for mono records, the cylindrical aluminium cantilever is easily robust enough for the job, whilst allowing maximum information retrieval from the groove.
The Cadenza Series of high-end Moving Coil (MC) cartridges was born out of the success of Ortofon's Kontrapunkt and MC Jubilee models. Though these models are amongst the most popular Ortofon has ever produced, the Danish cartridge masters still decided to develop a new range that was even more ambitious.
The name Cadenza comes from the Italian word for cadence and refers to the section in a concert where the orchestra stops playing, leaving the soloist to play alone in free time without a strict, regular pulse. A Cadenza can be written or improvised, but it's usually the most elaborate and virtuosic part the solo instrument plays during the whole piece. It, therefore, seemed fitting that such a capable and nuanced cartridge series should use the same name.
By carefully implementing cobalt-iron pole pieces, using new improved winding processes on the armature, and employing an extruded aluminium housing - amongst other changes - the Cadenza Series is able to out-perform all those that came before it. Like other modern ranges, the Cadenza Series is structured in Ortofon's preferred colour-tier nomenclature; so there are Red, Blue, Bronze, Black and Mono (White) variants available to suit varying budgets and tastes.
As with all modern Ortofon ranges, the Mono cartridge in the Cadenza Series is the White model. The Cadenza Mono brings high-quality pick-up technology back to the now often overlooked world of mono recordings. The Cadenza Mono is made with a Nude Fine-Line stylus and a cylindrical aluminium cantilever. For easy use the rear pins are connected internally, so you get the same signal from both pairs of pins. The stylus radius is r/R 8/40 µm, perfect for most mono records.
Sharing the same internal build as the stereo Cadenza Red, and with optimized adjustments for mono playback, the sound is relaxed, homogeneous and moderate. Dig out your old records, as well as new micro-groove mono records and experience the Cadenza Mono in all its glory.
Who is Ortofon?
Ortofon is a Danish manufacturer of high quality phono cartridges, designed to get the very most out of your vinyl collection from a variety of price points. Ortofon cartridges, both Moving Magnet and Moving Coil configurations are commonly found supplied with high-quality ProJect turntable models, but Ortofon cartridges sound exceptional with any compatible turntable.
Output Voltage (at 1kHz, 5cm/sec) | 450 μV |
Frequency Range (at -3dB) | 20 Hz - 50 kHz |
Frequency Response 20Hz - 20kHz | -3 |
Tracking Ability at 315Hz | Typically 70μm |
Compliance, Dynamic, Lateral | 12μm / mN |
Stylus Type | Nude Fine Line |
Cantilever | Aluminium |
Stylus Tip Radius r / R: | 8/40 |
Tracking Force Range | 2.2 - 2.7g (22 - 27mN) |
Recommended Tracking Force | 2.5g (25mN) |
Tracking Angle | 20º |
Recommended Load Impedance | 50 - 500Ω |
Cartridge Body Material | Stainless Steel Aluminium |
Cartridge Colour | Natural / Black |
Cartridge Weight | 10.7g |
