Ortofon OM5E Moving Magnet Cartridge
Ortofon OM5E Moving Magnet Cartridge
Ortofon is a Danish manufacturer of high-quality phono cartridges, designed to get the very most out of your vinyl collection from a variety of price points. Ortofon cartridges, both Moving Magnet and Moving Coil configuration are commonly found supplied with high-quality ProJect turntable models, but Ortofon cartridges sound exceptional with any compatible turntable.

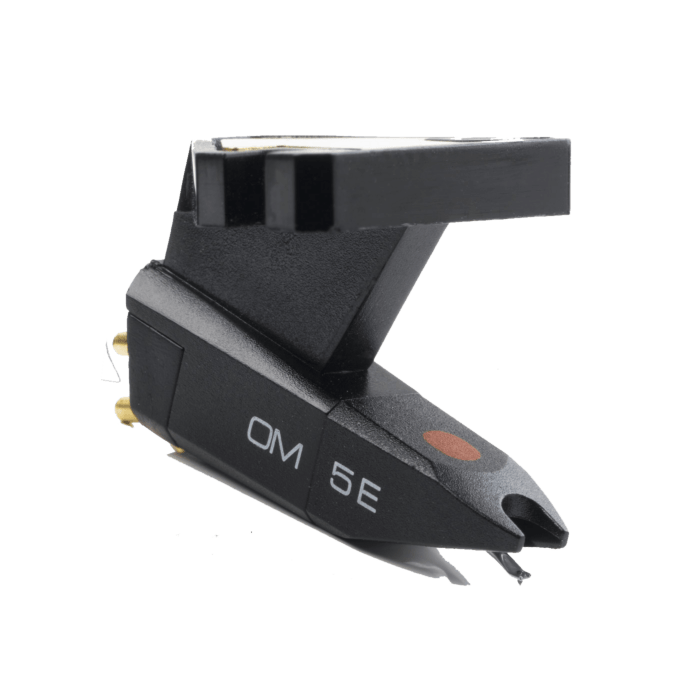

The OM 5" is a moving magnet (MM) cartridge designed and built by Ortofon to offer a superlative vinyl listening experience at the introductory level. Its elliptical shaped stylus allows for a balanced and dynamic playback that's free from distortion.
The OM 5E can be found fitted as standard on many of ProJect's award-winning entry-level turntable models, the OM5E sits at a comfortable price-point while performing as a very capable, high-fidelity cartridge.
Please note, any OM-series replacement stylus will fit in this body, including the Stylus 78. Designed for general listening use.
Who is Ortofon?
Ortofon is a Danish manufacturer of high-quality phono cartridges, designed to get the very most out of your vinyl collection from a variety of price points. Ortofon cartridges, both Moving Magnet and Moving Coil configuration are commonly found supplied with high-quality ProJect turntable models, but Ortofon cartridges sound exceptional with any compatible turntable.
Output Voltage (at 1kHz, 5cm/sec) | 4mV |
Channel Balance at 1kHz | 2dB |
Channel Separation at 1kHz | 22dB |
Channel Separation at 15kHz | 15dB |
Frequency Range (at -3dB) | 20 Hz - 25 kHz |
Frequency Response 20Hz - 20kHz | ± 2dB |
Tracking Ability at 315Hz | Typically 65μm |
Compliance, Dynamic, Lateral | 20μm / mN |
Stylus Type | Elliptical |
Stylus Tip Radius r / R | 8 / 18μm |
Tracking Force Range | 1.5 - 2.0g (16 - 20mN) |
Recommended Tracking Force | 1.75g (17.5mN) |
Tracking Angle | 20º |
Internal Impedance / DC Resistance | 750Ω |
Internal Inductance | 450mH |
Recommended Load Resistance | 47kΩ |
Recommended Load Capacitance | 200 - 600pF |
Cartridge Colour Body / Stylus | Black/Black |
Cartridge Weight | 5g |
Replacement Stylus Unit | Stylus 5E |
