Rega Nd5 Moving Magnet Cartridge
Free UK Delivery

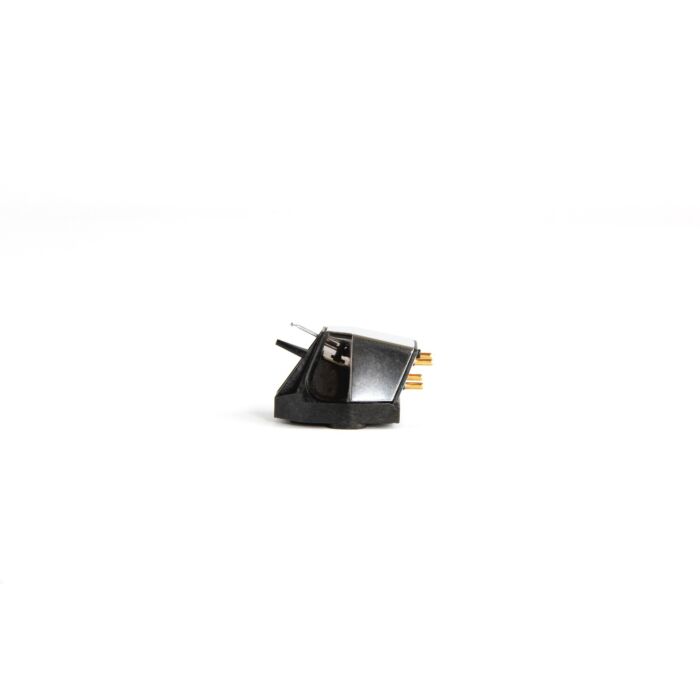

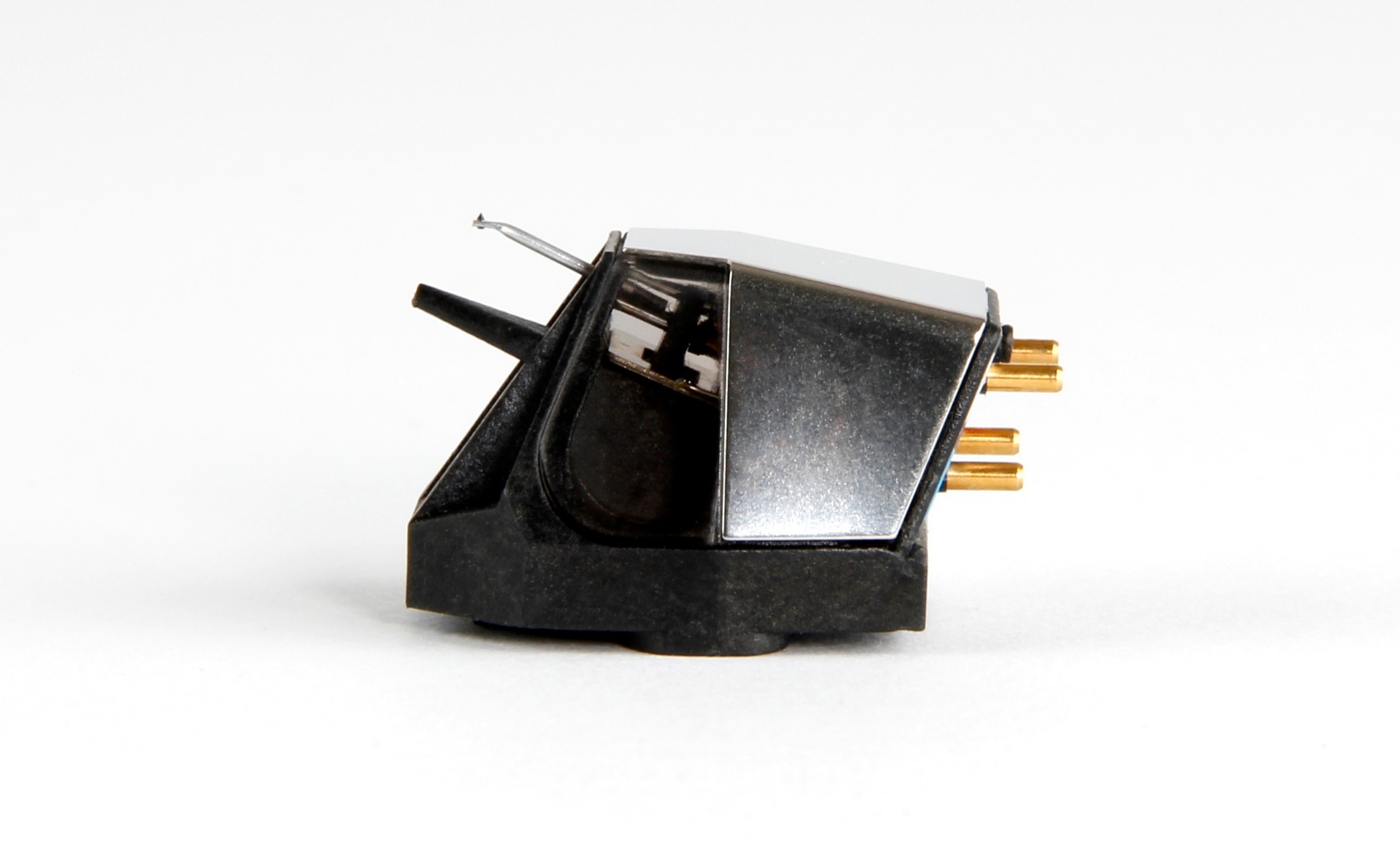

Rega Nd5 Moving magnet cartridge
Building on the highly successful Nd3 cartridge the all-new Nd5 moving magnet cartridge was developed over 10 years and promises to deliver ‘next level’ performance from moving magnet technology. We believe the Nd range (patent pending) is the world's first to use ultra-high powered Neodymium magnets, allowing us to create this totally unique design.
Key Features
- Perfect Elliptical nude diamond profile stylus
- Aluminium cantilever
- Neodymium magnet
- Unique Generator
- Rega 3-point mounting system
- Highly rigid lightweight PPS body
- Handmade stereo cartridge
- 100% recyclable packaging
- Lifetime warranty against manufacture defects
Each Nd5 is meticulously hand-made by Rega's highly skilled technicians. The design uses brand-new generator geometry with perfect symmetry to achieve accurate channel balance. The Nd5 also has an optimised pole gap for superior linearity and cross-talk characteristics, this provides a far wider soundstage than the previous models. This new cartridge is created with miniaturised parallel coils which are wound in-house utilising 38-micron wire with just 1275 turns. This produces a low inductance, low impedance generator giving vastly improved high-frequency response. In keeping with our commitment to sustainability, the Nd range is supplied in 100% recyclable packaging.
Nd Magnet technology
Often used in Moving Coil designs (including our own) we believe the Nd5 is the first moving magnet to utilise a Neodymium (Nd) N55 magnet. This is the world’s most powerful commercially available magnet and is a crucial component that makes this unique design possible by delivering extra power than standard bar magnet designs.
Glass-filled PPS body
The complete assembly is housed in our zero-tolerance Injection moulded glass-filled polyphenylene sulphide body (PPS) which is a lightweight and highly rigid material. A low-mass body reduces stress on the tonearm bearings and aids free movement which is critical in accurate vinyl replay. This new body design was inspired by our hugely successful MC range.
Cantilever & stylus profile
The Nd5 aluminium cantilever is fitted with a precision-perfect elliptical nude diamond stylus. This profile provides exceptional tracking accuracy and extracts greater levels of detail from the vinyl surface.
Factory Fitted options

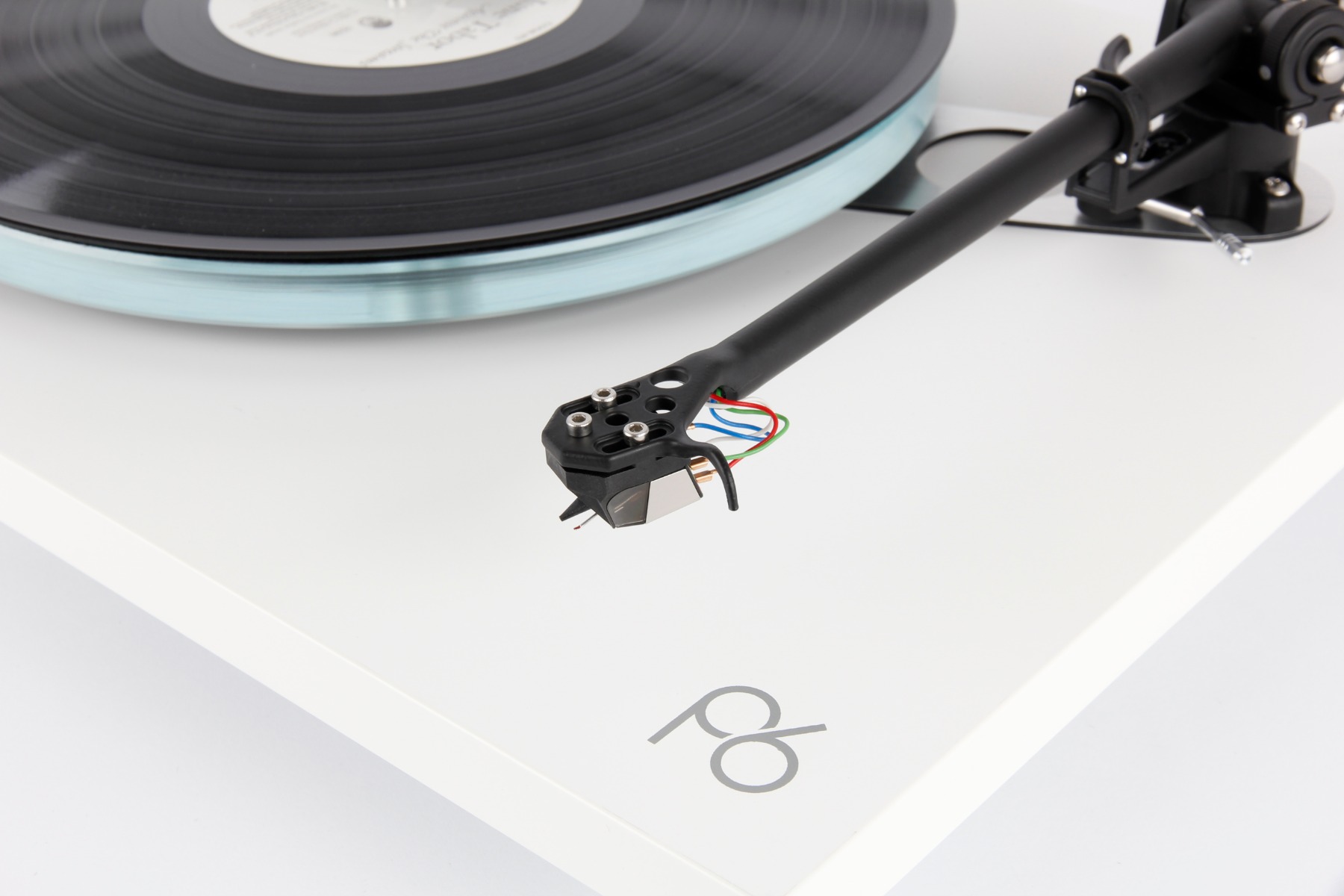

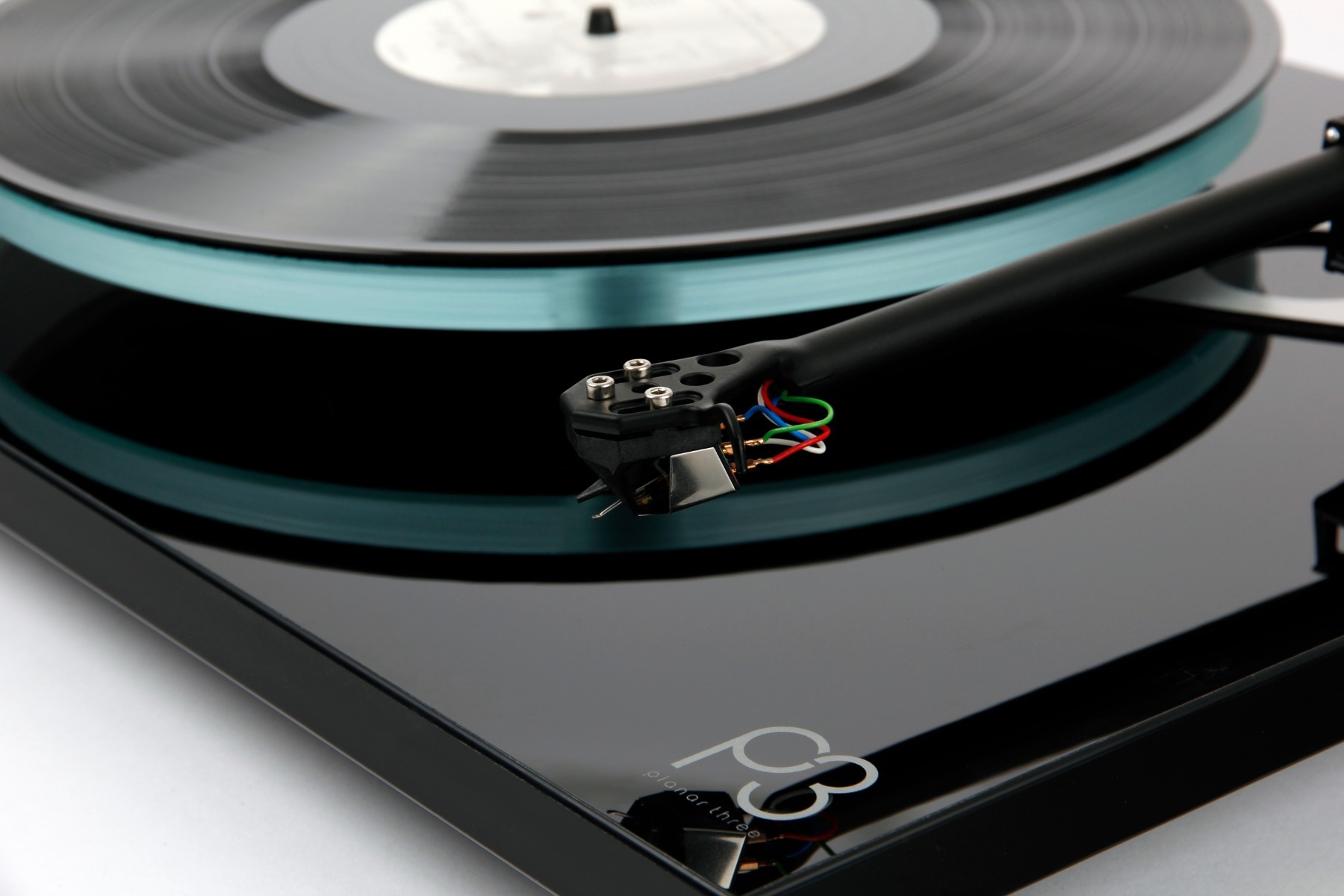

The Nd5 cartridge will be offered as a factory-fitted option on the multi-award winning Planar 3 and Planar 6 turntable models. Designed specifically with these turntables in mind, the Nd5 promises to extract the very best from your vinyl collection. The factory-fitted packages are offered at a discounted rate compared to when purchased separately, ask your Rega dealer for details.
The unique pivot pad design of Rega cartridges improves performance by eliminating the mechanical joint between the stylus housing and the main body. This vastly improves the tracking ability and stability of the stylus. If you should damage or wear out your Rega cartridge, simply return it to us via the link above and your cartridge will be fitted with a new cantilever, stylus and pivot pad. Each rebuild is fully tested as a new cartridge would be. The rebuild price is equivalent to a replacement stylus offered by other manufacturers.
Who is Rega?
Rega is a specialist hifi manufacturer based in Essex, UK and is renowned for developing and constructing some of the most highly regarded turntables (as well as cartridges and tonearms), electronics and loudspeakers available on the hifi market today. Rega was founded in 1973, and they have honed their craft over many years of being a leading brand in every category they put a product to.
UK Delivery
Providing your item is in stock, the order is usually dispatched within 24 hours. Postage and packing is completely free for orders over £99*. Out of stock items will be dispatched as soon as they become available, which can take between 4 to 21 days
UK Delivery orders are sent via our couriers' DPD Local on a next-day-delivery service and usually take between 1 and 3 days.
Local Delivery
Certain manufacturers disallow mail order for their products, however a local delivery may be possible.
We offer a local delivery service for a large number of our products. After your order has been placed, a member of the Hifi Gear team will contact you to arrange a convenient date and time for your local, personal delivery.
Click & Collect
We offer a free ‘Click & Collect’ service on all items. As soon as your order has been completed and is ready for collection a member of our team will be in contact with you. Orders can be collected from our store at 11 King Street, Hereford, HR4 9BW.
Please use this link to find more detailed delivery information or contact us for more details
-

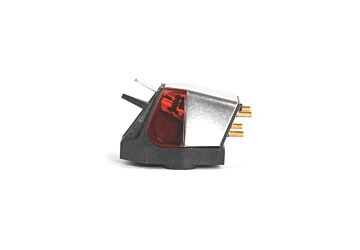

Rega Nd3 Moving Magnet Cartridge£175.00
-
