Rotel RC-1570 Stereo Preamplifier Ex-display

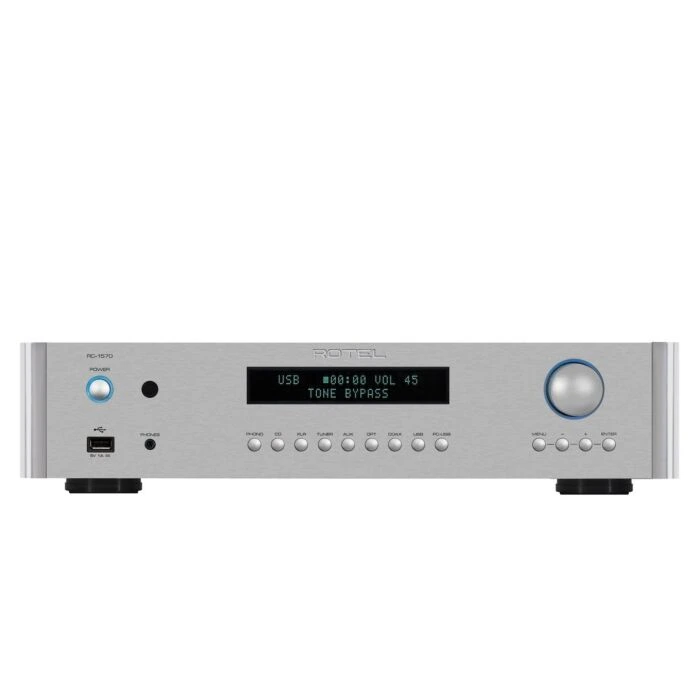

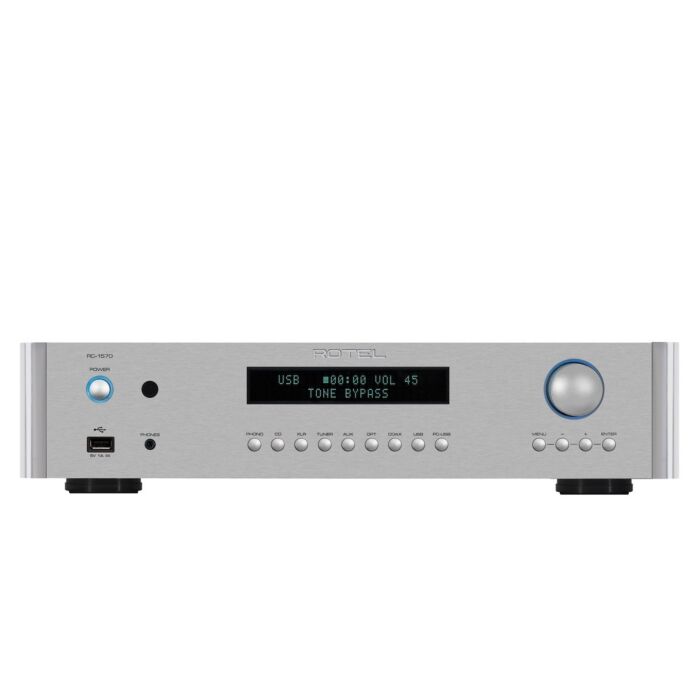

Rotel RC-1570 Stereo Preamplifier
24 bit 192kHz Wolfson DAC
Fully balanced input via XLR sockets
Front panel USB
2 x Coaxial 2 x Optical input
Moving magnet phono stage
Featuring audiophile components throughout its circuitry for the best possible sound performance, the new Rotel RC-1570 stereo preamplifier is more than just an analogue pre-amp - it also has a 24 bit 192kHz Wolfson DAC on board so that both digital and analogue sources can be accepted, adding flexibility and future-proofing to the RC1570's appeal.
The rear panel provides extensive connectivity for both analogue and digital sources - four unbalanced analogue inputs on RCA phono connectors allow for the connection of line-level stereo sources, whilst there is also a fully balanced input via XLR sockets, ideal for connecting the balanced outputs of the matching RCD-1570 CD player for example. In addition, a high quality moving magnet phono input gives a suitable interface to a turntable.
Four digital inputs can be found, two optical and two coaxial, plus a front and rear mounted USB input for PC connectivity using iTunes or Windows Media Player - all of these inputs can handle 24-bit 192kHz resolution files, so that lossless files can be streamed for maximum sound quality. A Bluetooth dongle is included which plugs into the USB input to allow wireless streaming of music files from your phone or tablet.
The discrete component circuitry of the RC1570 has been very carefully laid out to maximise the signal to noise ratio, which results in a very open, transparent and detailed sound presentation. This is further aided by a very stable regulated power supply capable of supplying high currents when required, for example during musical peaks.
Who is Rotel?
Total Harmonic Distortion (20Hz-20kHz) | < 0.004% |
Intermodulation Distortion (60 Hz : 7 kHz, 4:1) | < 0.004% at 1V output |
Phono Input (MM) Impedance | 2.5 mV / 47k ohms |
Line Level Inputs (RCA) Impedance | 150 mV / 24k ohms |
Line Level Inputs (XLR) Impedance | 300 mV / 50k ohms |
Phono Input Overload | 65 mV |
Line Level Inputs Overload | 4.3 V |
Output (RCA) Level/Impedance | 1V / 100 ohms |
Output (XLR) Level/Impedance | 2V / 100 ohms |
Phono Input Frequency Response | 20 Hz-20k Hz, 0 +/- 0.3 dB |
Line Level Inputs Frequency Response | 4 Hz-100k Hz, 0 +/- 0.3 dB |
Bass Tone Control | +/-10 dB at 100Hz |
Treble Tone Control | +/-10 dB at 10kHz |
Phono Input Signal To Noise Ratio | 80 dB |
Line Level InputsSignal To Noise Ratio | 110 dB |
Digital Frequency Response | 10Hz - 95k Hz (+/-3.0dB, Max) |
Digital Signal to Noise Ratio (IHF “A” weighted) | 100 dB |
Digital Input Sensitivity/Impedance | 0 dBfs / 75 ohms |
USB/iPod Digital Signals | WAV, MP3, WMA, AIFF (up to 48kHz 16 bit) |
Coaxial/Optical Digital Signals | SPDIF LPCM (up to 192kHz 24 bit) |
PC/USB | USB Audio Class 1 (up to 96kHz 24 bit) USB Audio Class 2 (up to 192kHz 24bit)* *Driver installation required |
EC Power Requirements | 230 Volts, 50 Hz |
Power Consumption | 15 Watts |
Standby Power Consumption | < 0.5 Watts |
Dimensions (W x H x D) | 431 x 99 x 320 mm |
Weight | 7kg |
